Products

Every component has been designed to maximize
performance and energy efficiency.



SAS are available with 8, 4, 2 or 1 floor.
Each floor contains 36 antenna rooms.
Super Antenna Systems

SAS

The performance of Super Antenna Systems (SAS) redefines everything mobile networks are capable of. Every component has been designed to maximize performance and energy efficiency. SAS isn't just better coverage, higher capacity, and faster data rates. It sets a whole new frontier.

The SAS antenna contains no electronics, they are 100% passive. All parts are made from aircraft graded aluminium, high precision manufactured according to highest standards.

  • Future proof; 4G MIMO4-8 and 5G
  • Previous mobile standards 3G, 2G, CDMA, FDD, TDD
  • Up to 144 Gbit/s site capacity over 1,600 km2.
  • 18-sectors, MIMO8 each with 256 dipoles
  • 690-2,700 MHz support for all bands and operators
  • Up to 30 dBi antenna gain
Supercharge your network

SAS Upgrade

Supercharge the network by upgrading existing sites with more powerful antennas and instantly get significant improvements. With Radio Innovation's new antenna upgrades, standard sites will increase coverage up to 10 times or site traffic capacity multiplied by 6-18 times.

  • Up to 10,8 Gbit/s site capacity
  • 18-sectors each with 256 dipoles
  • 690-2,700 MHz support for all bands
  • Up to 30 dBi antenna gain
  • Supports up to 432 RRHs per site

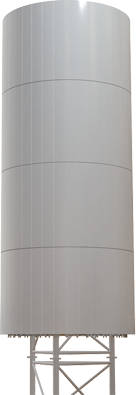

SAS Upgrades are available with 4, 2 or
1 floor around existing towers.
Super Efficient Towers

SET

RI’s towers all have unique performance characteristics. The design is modular and have a very low wind resistance and a very high pay-load EPA to weight ratio. This is essential to deliver 4G LTE and high speed data, relative to GSM voice only. The traffic will be more than 6,000 times greater per customer than voice traffic.

Energy requirements per customer are much lower than a standard site. Power consumption is reduced by increased antenna-gain, higher towers and top mounted RRHs. Power to the RRH and to the BTS can be locally generated by solar and wind power, giving up 97% self-sufficient green sites.


Mechanical Dimension STD+STD ant SET+SAS SET+SAS Guyed SET+SAS Guyed SET+SAS
Tower top height (ha) m 50 50 118 240 320
Antennas+RRH floors 2,5m (H) qty 3 8 16 24 32
Antenna 0,35m around (N) qty 6 36 48 60 60
Antenna diameter and platform (Dy) m - 4.1 5.3 6.5 6.5
Antenna rooms H=2.5m P=H×N qty 18 288 768 1,440 1,920
EPA TOT of Tower + Antennas m2 25 49 127 234 312
EPA antennas m2 13 49 127 234 312
Tower weight typical (W) ton 10 22 80 56 80
Performance 1, EPA ant × h a2,2 / W m4,2 /kg 7.1 29 108 720 1,266
Performance 2, G x × RRH ports × h a2,2 / W m2,2 /kg 1,240 133,083 518,816 3,510,462 6,169,733
Performance 2, Relative qty 1 107 418 2,831 4,976
